High quality 3D TLC NAND for excellent performance

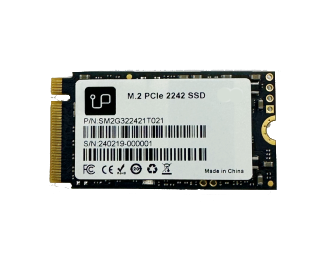

The slim design of this M.2 SSD has a 5 layer graphene copper foil heat sink to allow for low power consumption and dissipate heat quickly and efficiently. Most of the 42mm NVMe SSDs are used in ultra books and slimline computers, so a cool operational SSD was high on our feature list. No matter the application or the use, this SSD could outlast your computer!
QUICK DETAILS
- Capacity: 512GB
- Interface Type:: NVMe M.2 PCIe
- Flash Type:: 3D NAND Flash
- Warranty:: 3 years
- Size:: 22mm x 42mm (2242)
Technical Specifications
Interface M.2, PCIe Gen3 x 2Lane
Sustained Read 1200MB/S
Sustained Write 950MB/S
4KB Random Read IOPS 69400MB/S
4KB Random Write IOPS 13500MB/S
Average Access time 0.12ms
OS support Windows 7,Windows 8.1,Windows 10,linux
Power Consumption input Voltage 5V+/_5%
Idle 0.54W
Active 2.15W
Write endurance 8years @100GBytes write and erase per day
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10years at 25ºC
MTBF 1,000,000hours
ECC Supports BCH ECC 8bits or 15bits in 512 bytes
Auto Bad Block Management in system
Shock 1,500G(@0.5ms half sine wave)
Vibration 16.4G(10Hz-2000Hz)
Ambient Humidity 5-95%
Software and Management Trim support Yes
Smart support Yes
NCQ support Yes
RADIO support Yes
We are a registered New Zealand company (Upgradeable Limited), all orders include 15% GST. You are protected by local consumer law when you buy here. All product ships from our Australian warehouse until we can set up local distribution.
